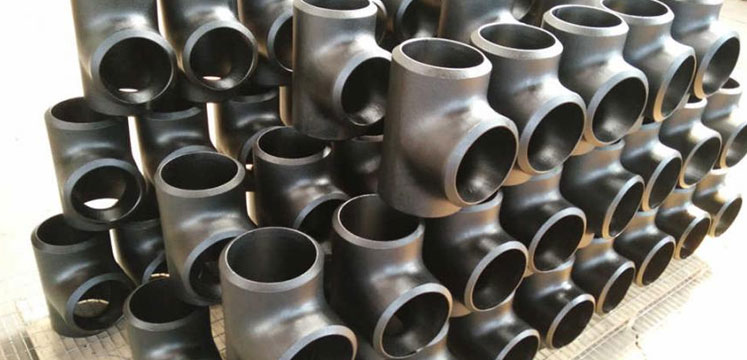

Split Tee
V M ALLOYS is a prominent manufacturer of stainless steel cross, carbon steel cross and alloy steel cross fittings, commonly known as a 4-way pipe fitting. Cross tee usuAlloy generates high stress on as temperature changes, because they are at the center of four connection points. In comparison, a tee is steadier than a cross, as a tee behaves like a three-legged stool, while a cross behaves like a four-legged stool.
Various grades of pipe caps manufactured by V M ALLOYS includes 304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our stocking program includes stainless steel pipe caps and carbon steel pipe caps of standard sizes and grades. Our specialty is to offer our customers with pipe caps in various shapes – round, square, rectangular or other special shapes.
SPLIT TEE SPECIFICATION
| Standard – ANSI/ASME : | ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| DIN : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | 2mm – 100 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXSEN10253-1, EN10253-2 |
| Schedule : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Size: | 2″~36″ 15-1200 |
| Pressure: | 150#~2500# |
| Wall Thickness: | Sch 10- Sch160 |
| Material: | Stainless Steel, Carbon Steel, Alloy Steel |
| Form: | Split Tees |
Split Tee Material & Grades:
| Stainless Steel Split Tee : | ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Split Tee : | ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Alloy Steel Split Tee : | ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Duplex Steel Split Tee : | ASTM A815, ASME SA815 UNS No S31803, S32205 |
| Super Duplex Split Tee : | ASTM A815, ASME SA815 UNS No S32750, S32950 |
| Nickel Alloy Split Tee: | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 90/10 & Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. Low Temperature Carbon Steel Split Tee : ASTM A420 WPL3, A420 WPL6 |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At V M ALLOYS, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
